Using the Admin UI

The Splinter Admin UI allows administrators to view circuit status and manage user profiles, circuit proposals, and circuits on a Splinter network.

This tutorial shows how to use the Splinter Admin UI with an example scenario that creates a circuit between Alice at Acme Corporation and Bob at Bubba’s Bakery. This example uses Docker containers that configure and start a node for each organization, acme-node-000 and bubba-node-000, as well as an external database for each node and a single external registry for node and key information.

As Alice, you will register as a new user and add user keys to your profile, then propose a circuit and view the proposal summary. As Bob, you’ll register and add keys, vote on the circuit proposal, then view the new circuit’s summary. Finally, you’ll log out for both Alice and Bob.

There are two paths in this tutorial: the first uses Biome for user authentication, and the second uses OAuth. Biome authentication will require users to register and login with a username and password that is verified by splinterd, while OAuth authentication uses a configured OAuth provider for logging users in. Both of these options will be covered. The choice here only affects the initial configuration and user registration/login; the other steps of this tutorial are the same for both paths.

Prerequisites

  • A clone of the splinter-ui repository

  • Docker Engine

  • Docker Compose

  • If using OAuth authentication, you will need to register an OAuth app with a supported OAuth provider. Splinter supports GitHub and any OAuth provider that conforms to the OpenID standard, including Google and Azure AD. Here are instructions for registering an app with some of the supported providers:

    Some providers will require a homepage URL and a redirect URL; if these are required, use the values http://localhost and http://localhost/splinterd/oauth/callback, respectively.

    Your chosen OAuth provider will give you a client ID and client secret for your registered OAuth app. These values will be used to configure splinterd in this tutorial. Additionally, if you are using an OpenID-compliant provider, you will need the URL for the provider’s OpenID discovery document. Here are details about the discovery documents for some of the supported providers:

Starting the Admin UI with Docker

  1. In a terminal window, navigate to the root of the splinter-ui repository.

  2. Start the Docker containers.

    Option 1: Biome

    If you wish to use Biome authorization, simply run the following command:

    docker-compose -f docker-compose-biome.yaml up --build


    Option 2: OAuth

    If you are using OAuth, you will need to set the following environment variables before running the Docker compose file: OAUTH_PROVIDER, OAUTH_CLIENT_ID, OAUTH_CLIENT_SECRET, and OAUTH_OPENID_URL (if applicable). For full details on these configuration values, see the Authorization configuration section of the splinterd man page.

    To run the Admin UI with a GitHub OAuth provider, you would run the following commands with the client ID and secret of your GitHub OAuth app:

    $ export OAUTH_PROVIDER=github
    $ export OAUTH_CLIENT_ID=<your-client-id>
    $ export OAUTH_CLIENT_SECRET=<your-client-secret>
    $ docker-compose -f docker-compose-oauth.yaml up --build


    To run the Admin UI with an OAuth provider that supports OpenID (such as Google or Azure AD), you would run the following commands with your client ID, client secret, and the URL of the OpenID discovery document:

    $ export OAUTH_PROVIDER=openid
    $ export OAUTH_CLIENT_ID=<your-client-id>
    $ export OAUTH_CLIENT_SECRET=<your-client-secret>
    $ export OAUTH_OPENID_URL=<openid-discovery-document>
    $ docker-compose -f docker-compose-oauth.yaml up --build

  3. Wait until the build completes and the containers have started. The output will end with messages that resemble this example:

     .
     .
     .
     splinterd-beta              | [2020-06-29 17:38:25.708] T["actix-rt:worker:0"] INFO [actix_web::middleware::logger] 172.19.0.5:36240 "GET /status HTTP/1.1" 200 219 "-" "curl/7.58.0" 0.000129
     splinterd-alpha             | [2020-06-29 17:38:25.745] T["actix-rt:worker:1"] INFO [actix_web::middleware::logger] 172.19.0.5:50672 "GET /status HTTP/1.1" 200 222 "-" "-" 0.000056
     generate-registry_1         | Added node 'alpha-node-000' to '/registry/registry.yaml'
     splinterd-beta              | [2020-06-29 17:38:25.770] T["actix-rt:worker:1"] INFO [actix_web::middleware::logger] 172.19.0.5:36244 "GET /status HTTP/1.1" 200 219 "-" "-" 0.000053
     generate-registry_1         | Added node 'beta-node-000' to '/registry/registry.yaml'
     docker_generate-registry_1 exited with code 0


Docker starts two versions of the Admin UI, one for each node. The Admin UI for alpha (alpha-node-000) is at localhost:3030. The UI for beta (beta-node-000) is at localhost:3031.

Logging In or Registering

  1. For Alice, open a browser and go to localhost:3030.

    Option 1: Biome

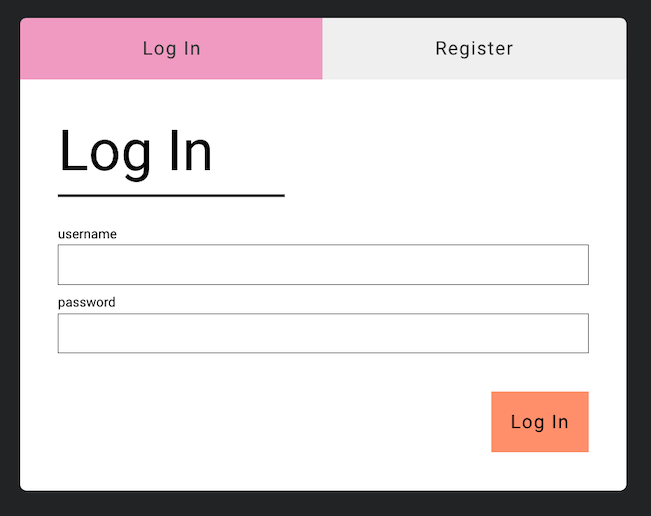

    The Biome Log In dialog displays.

    Admin UI Biome login dialog

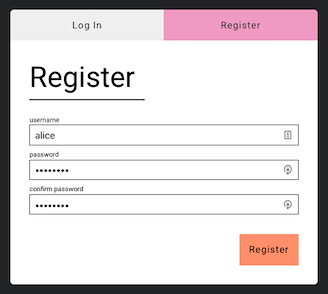

    To register Alice as a new user, click Register, then enter a new username (such as alice or alice@acme.com) and password.

    Option 2: OAuth

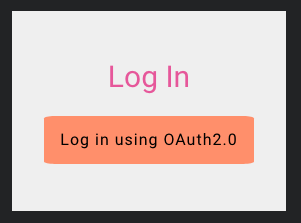

    The OAuth Log In dialog displays.

    Admin UI OAuth login dialog

    To login Alice, click the login button and follow the login process of the configured OAuth provider. Once completed, the browser will be redirected back to the Admin UI.

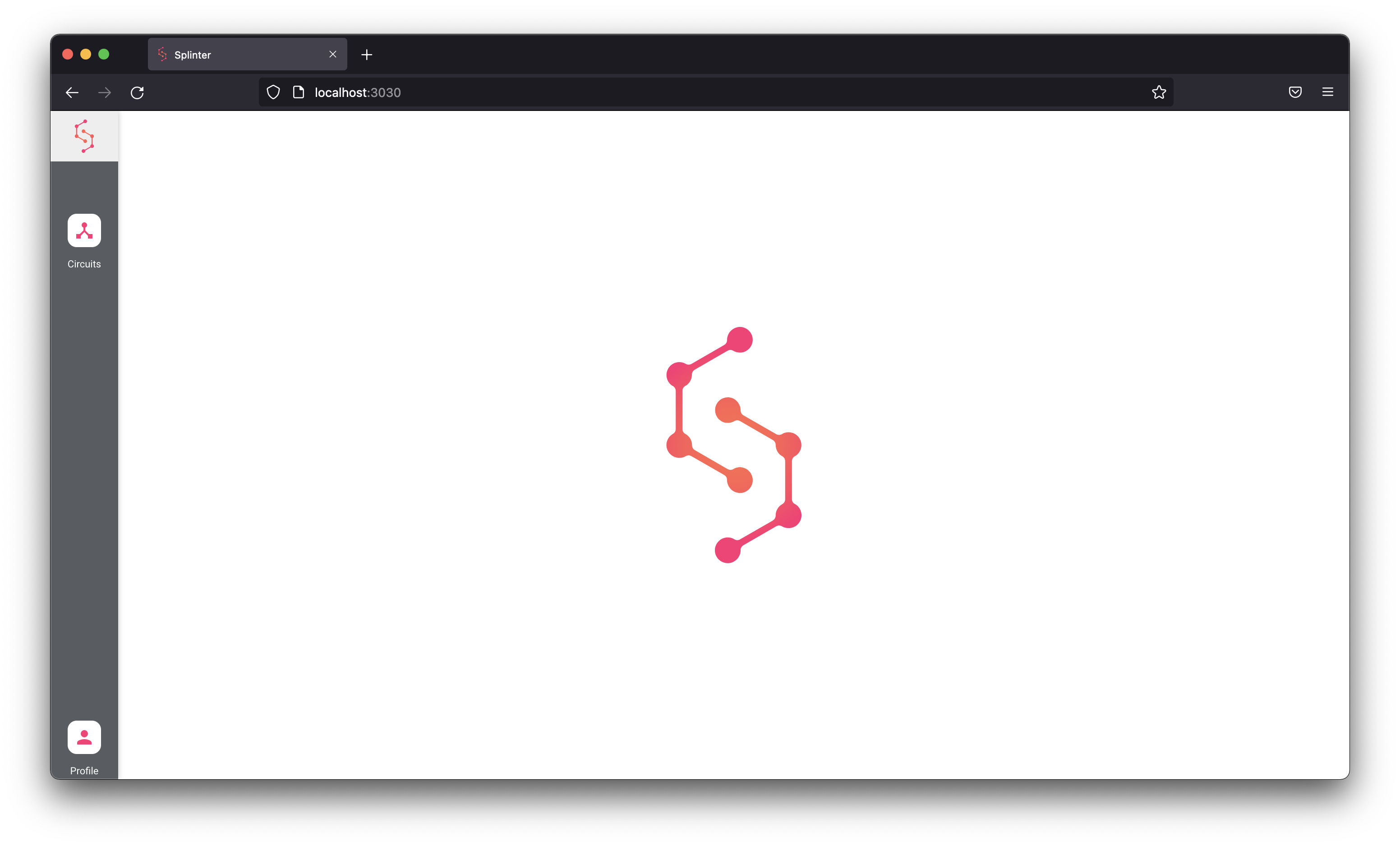

  2. Next, the main Admin UI page displays.

NOTE: To repeat this procedure for Bob, open a new browser window and go to localhost:3031. Then use the same steps to register/login Bob as a new user.

Adding User Keys

After registering a new user, add the user’s public and private keys.

  1. Get Alice’s keys from the Splinter registry, which is available in the generate-registry container.

    a. In a separate terminal window, navigate to the root directory for splinter-ui, then open a bash shell in the container:

     docker-compose -f docker-compose-biome.yaml run generate-registry bash


    b. Display Alice’s public and private keys:

     root@9739a96d4f2a:/# cat /registry/alice.pub
     03ae67a60aacd6db99c851119204c81914c97bc231c79af9a22a2cb78f25218383
     root@9739a96d4f2a:/#

     root@9739a96d4f2a:/# cat /registry/alice.priv
     12f5463fcf7525363cacaad7b7aba4e8f182ec38942f7a74678bdf6fdfab050a
     root@9739a96d4f2a:/#

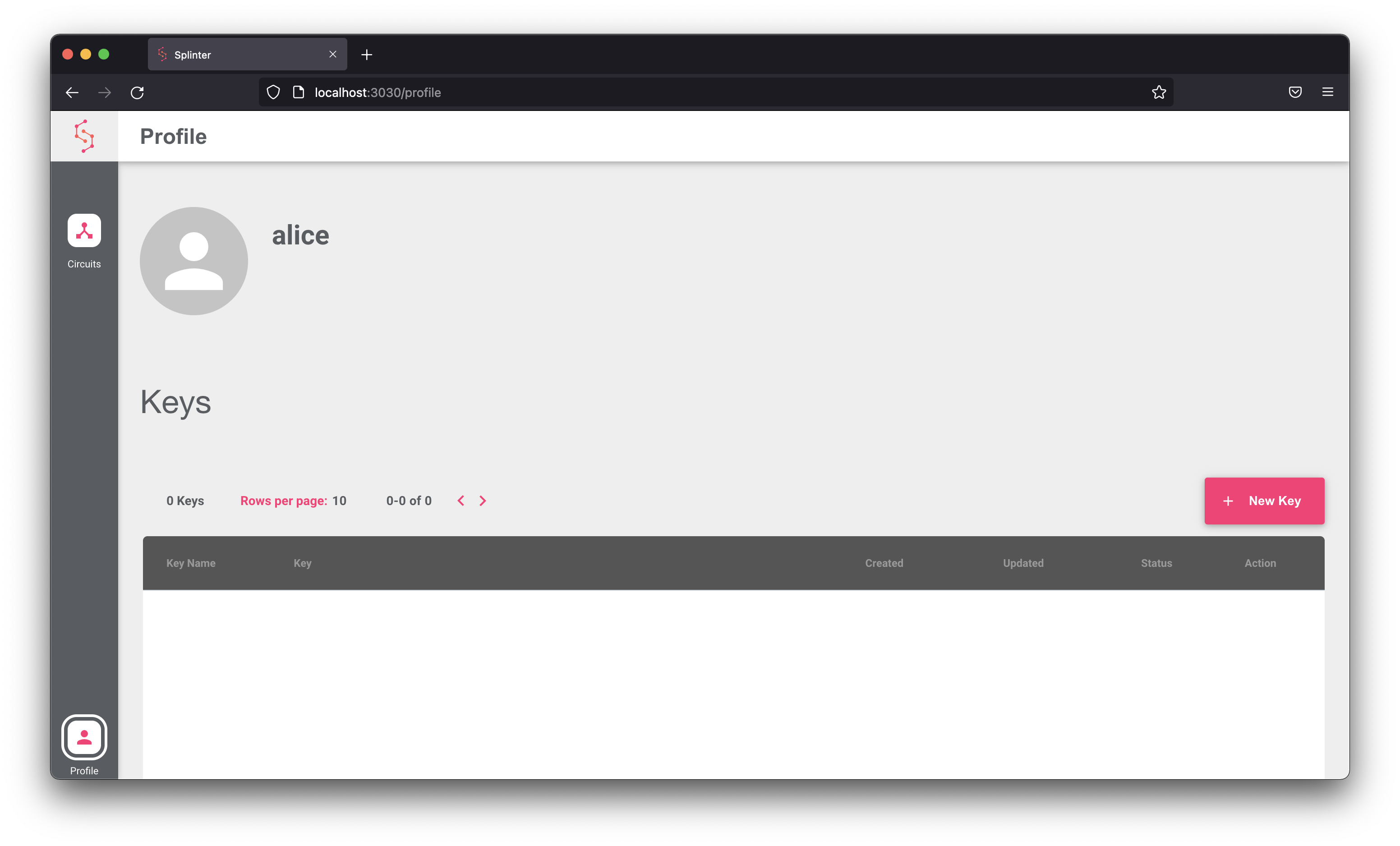

  2. On the main page, click the profile icon in the left menu. The Profile page appears.

  3. On the Profile page, click the pink New Key button to go to the Create Key page.

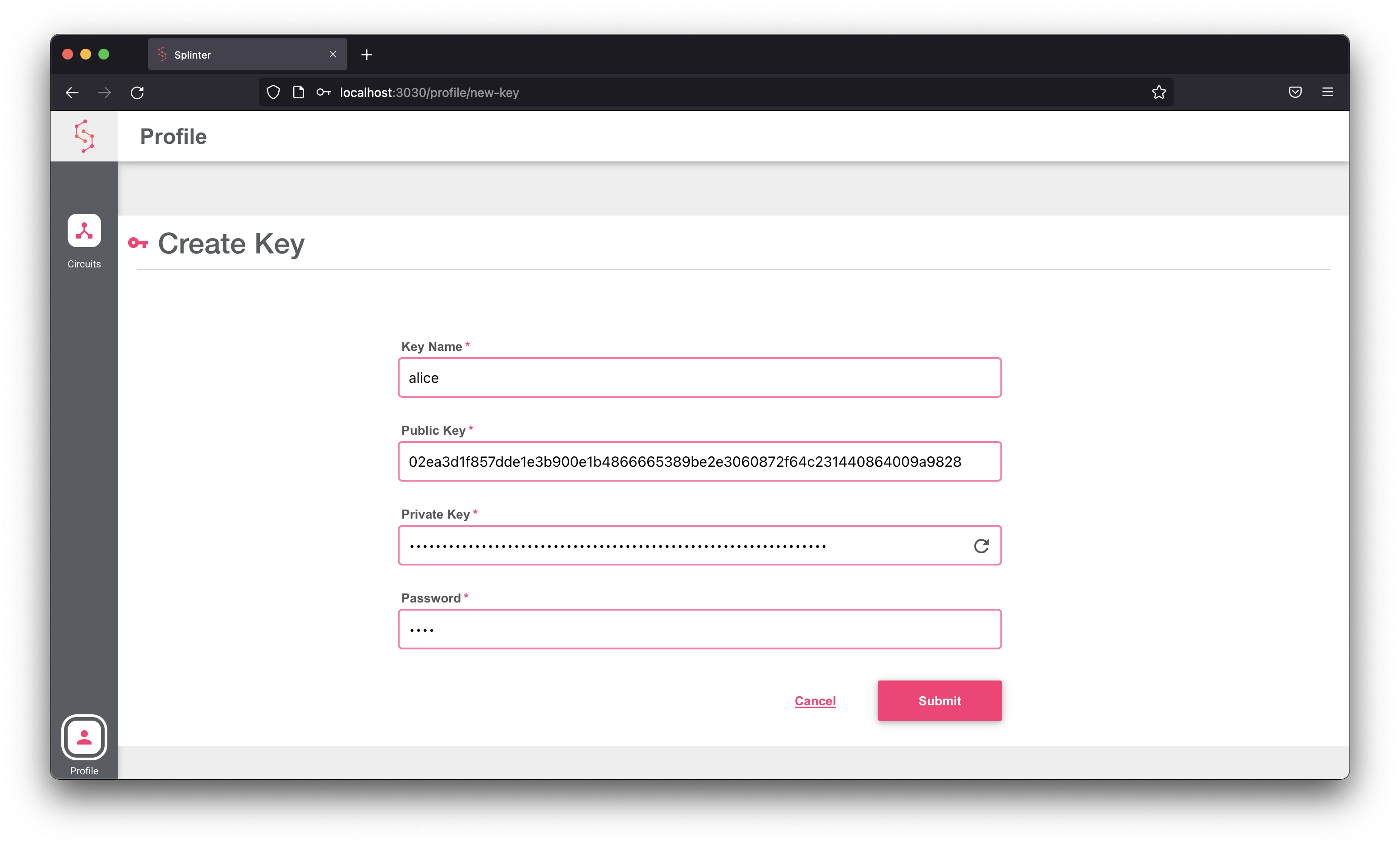

  4. On the create key page, enter a key name (such as alice), then copy the key values from the generate-registry terminal window and paste them here, then enter a password for the key.

  5. Click the Submit button.

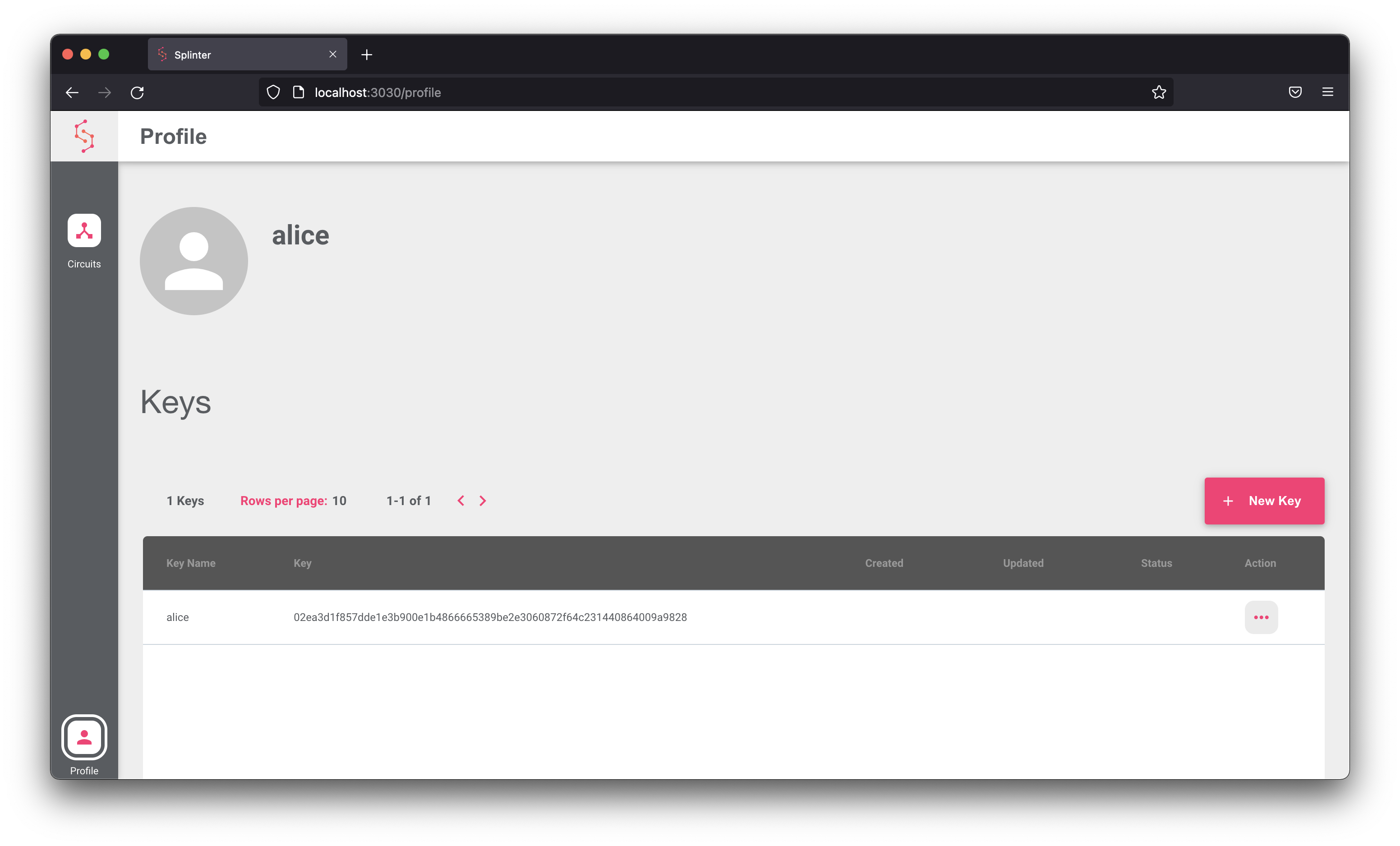

    If the operation was successful, the Profile page displays Alice’s public key. At this point, it is an inactive key. The Admin UI can store multiple key pairs for each user, but one key pair must be marked as active.

  6. To make Alice’s key active, follow these steps.

    a. Hover over the icon in the action column, then click the check mark icon.

    b. Enter the password that was set for the key when prompted.

    c. If the operation was successful, the key is now marked as Active.

NOTE: To repeat this procedure for Bob, use a separate browser window that points to localhost:3031. In the generate-registry container, Bob’s keys are available in the files /registry/bob.pub and /registry/bob.priv.

Proposing a Circuit

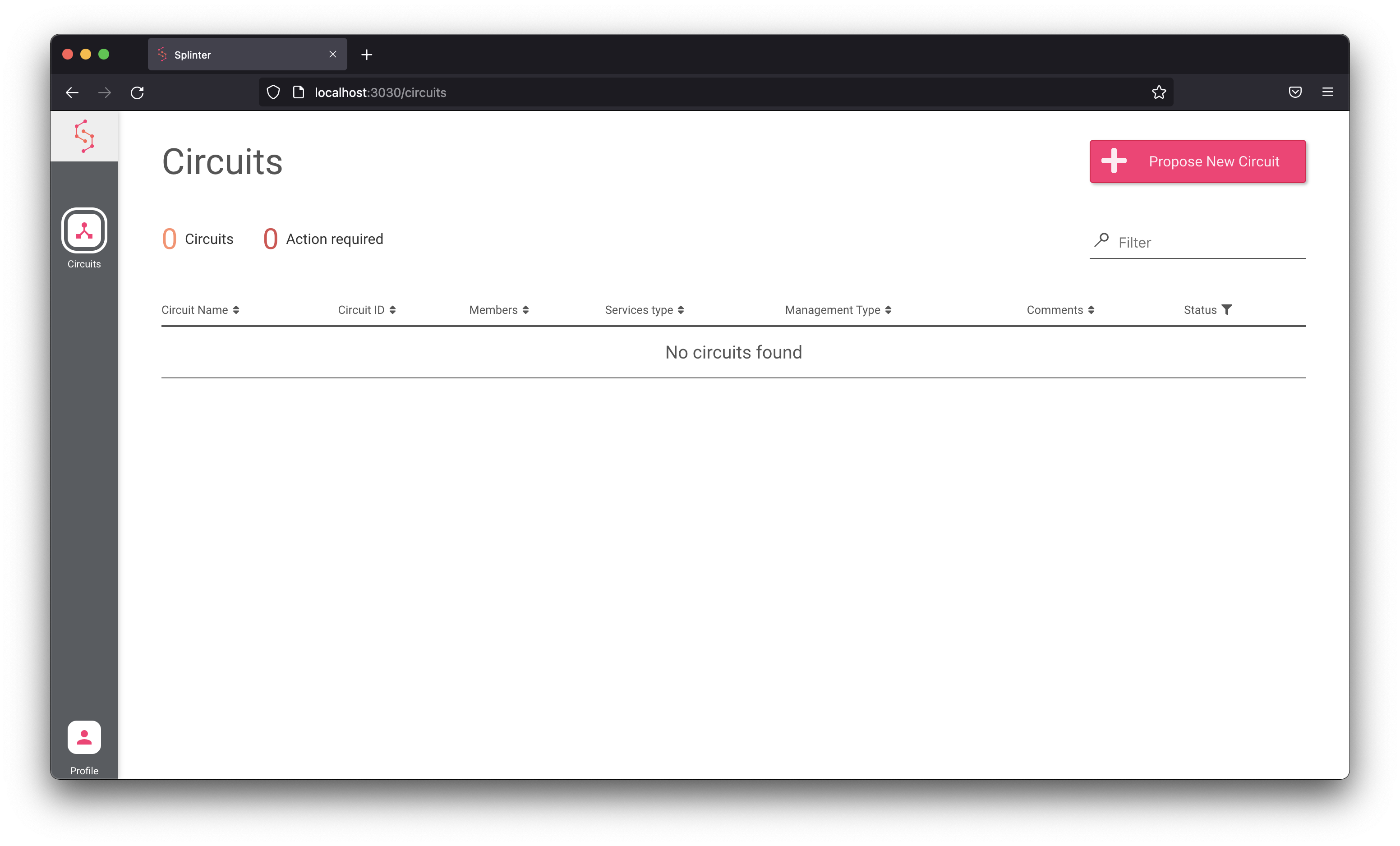

  1. As Alice, click on the Circuits icon in the left menu. The Circuits page displays a summary of existing circuits and proposals. In this example, nothing exists yet.

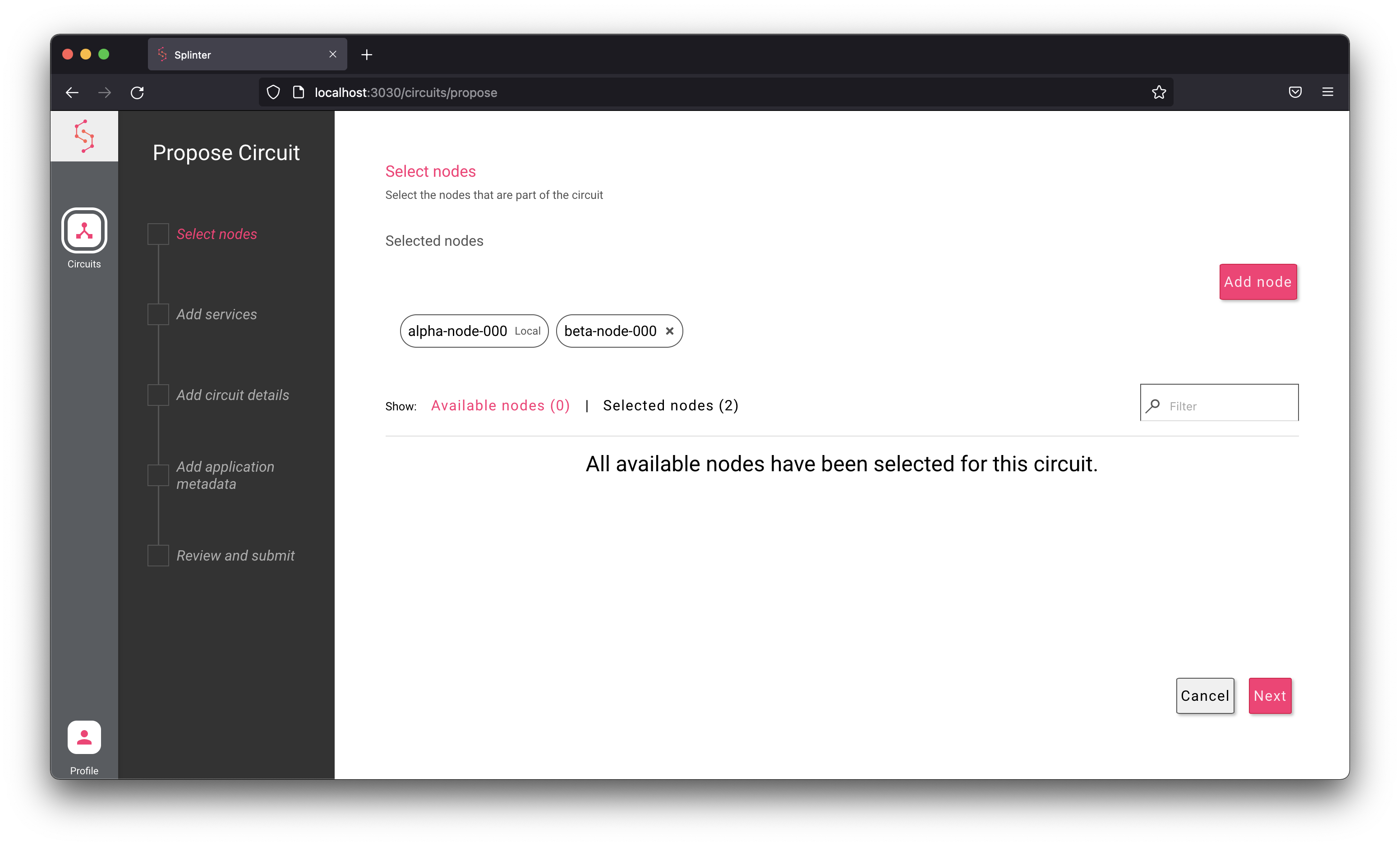

  2. Click Propose New Circuit. The Add nodes form shows the nodes that are available for the circuit, with the local node (acme-node-000) preselected. Select Node beta-node-000, then click Next.

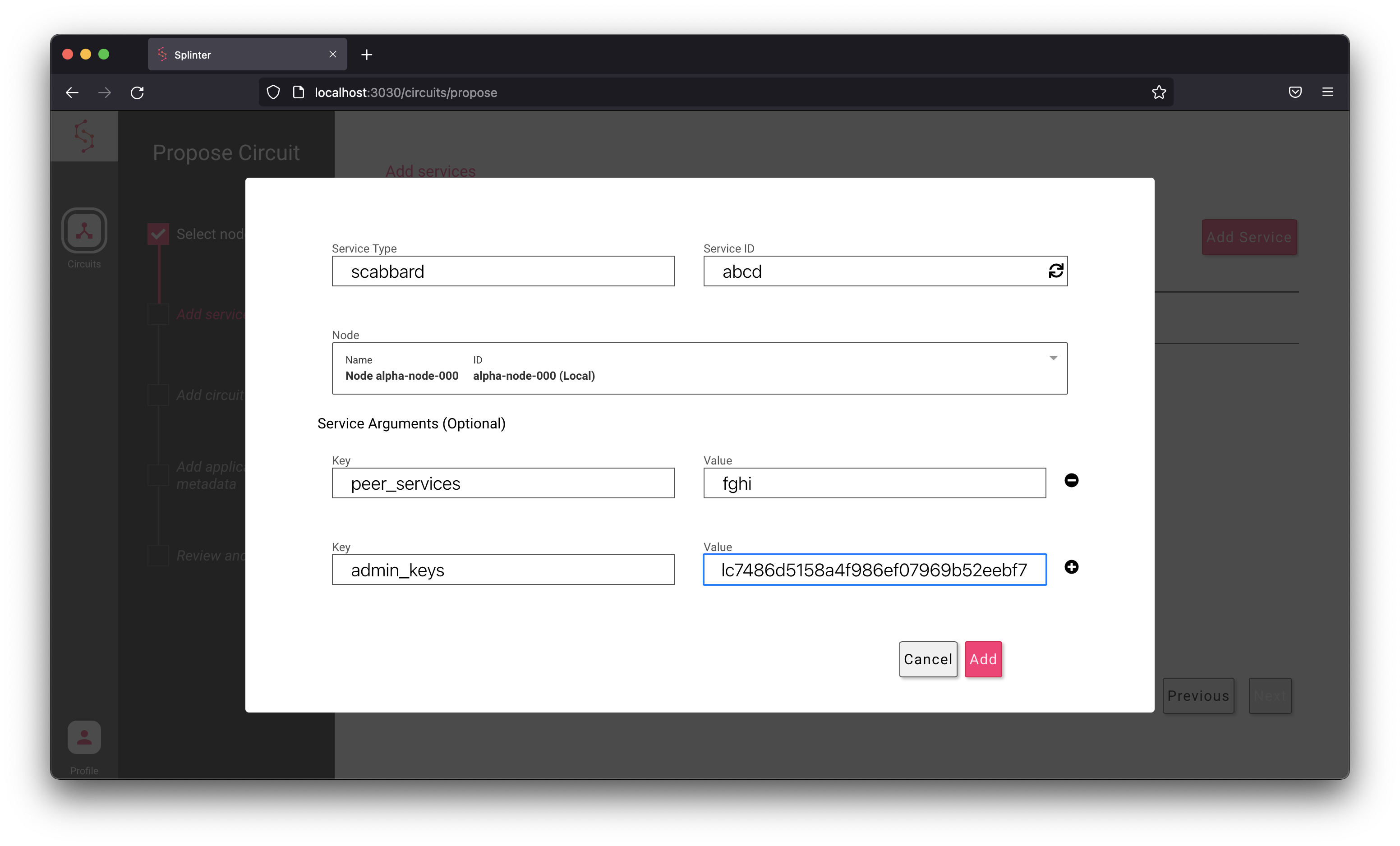

  3. On the Add services form, click the Add Service button and enter the following service information for the alpha node.

    Item Value
    Service type scabbard
    Service ID abcd
    Allowed node alpha-node-000
    Service argument   Key: admin_keys
        Value: ["<Alice's public key>"]
    Service argument   Key: peer_services
        Value: ["fghi"]


    Tip: To add a second service argument, click the small + icon on the right.

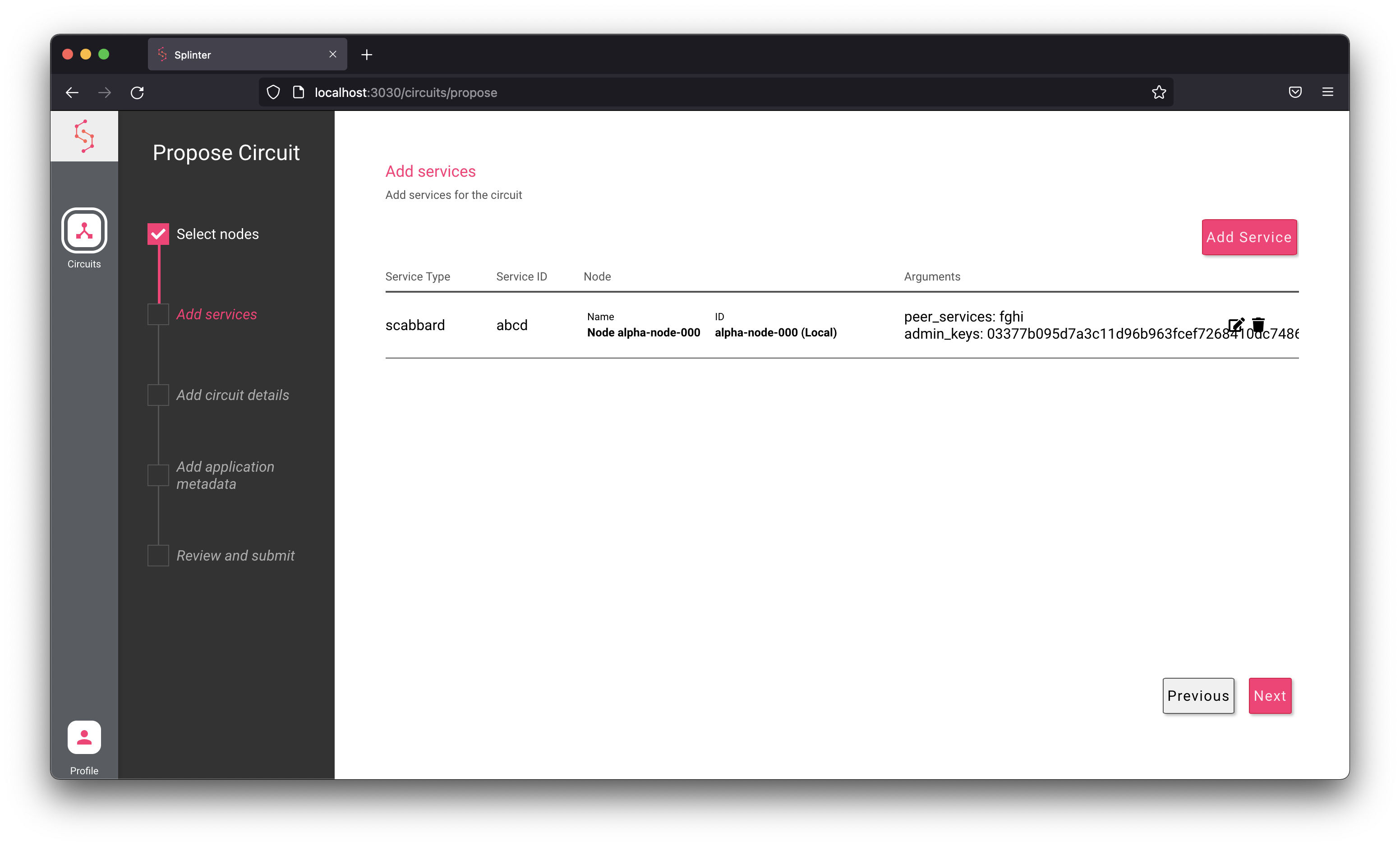

  4. Click the Add button to submit alpha’s service information. If the operation was successful, the service will be shown in the table.

    Otherwise, an error displays so you can correct the information and resubmit it.

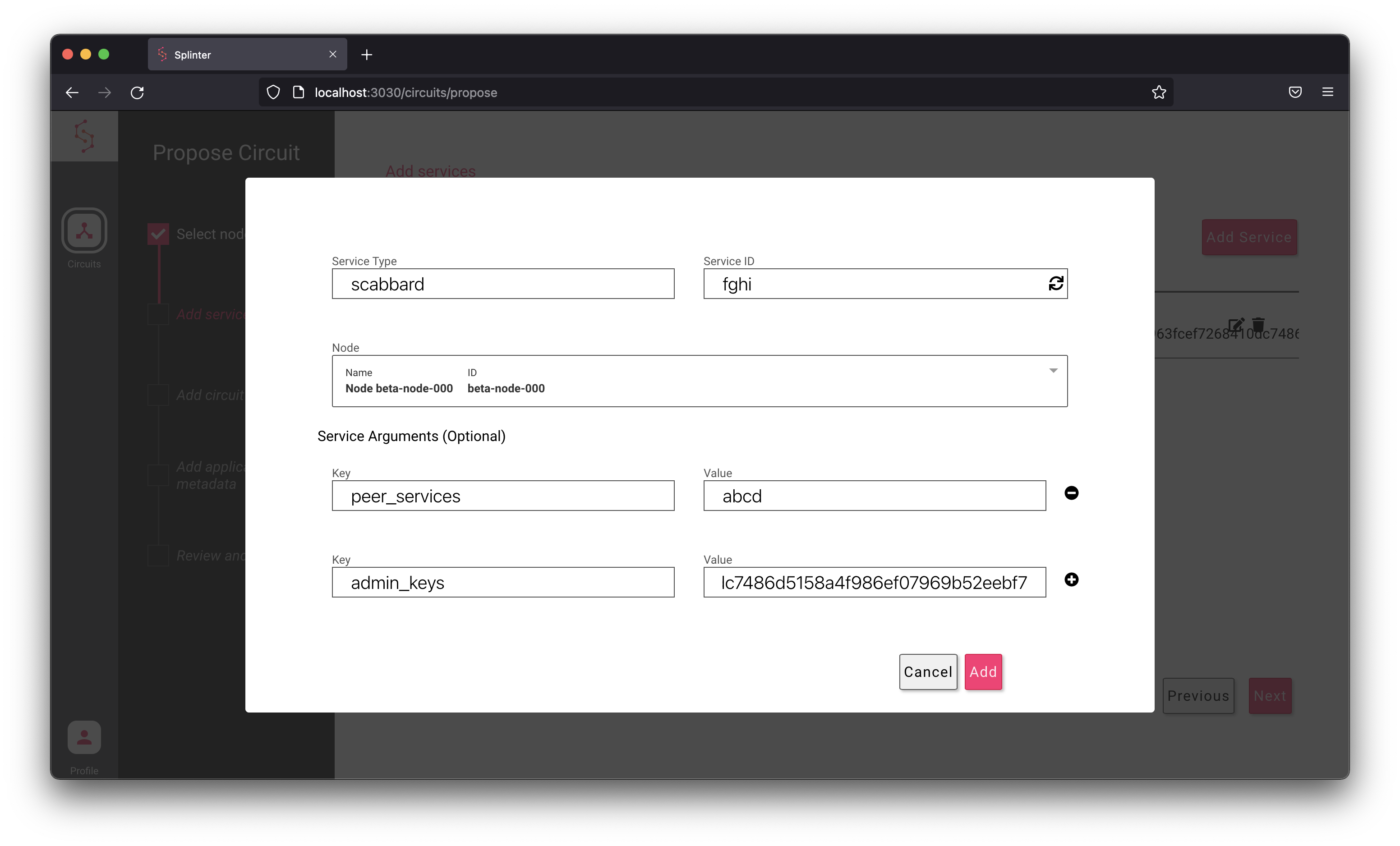

  5. Click the Add Service button at the top of the form to add another service, then enter the service information for the beta node.

    Item Value
    Service type scabbard
    Service ID fghi
    Allowed node beta-node-000
    Service argument   Key: admin_keys
        Value: ["<Alice's public key>"]
    Service argument   Key: peer_services
        Value: ["abcd"]


    Note: You must use the same key (or the same set of multiple keys) for all services on a circuit.

  6. Click the Add button to submit beta’s service information.

  7. Review the service information for both nodes, then click Next.

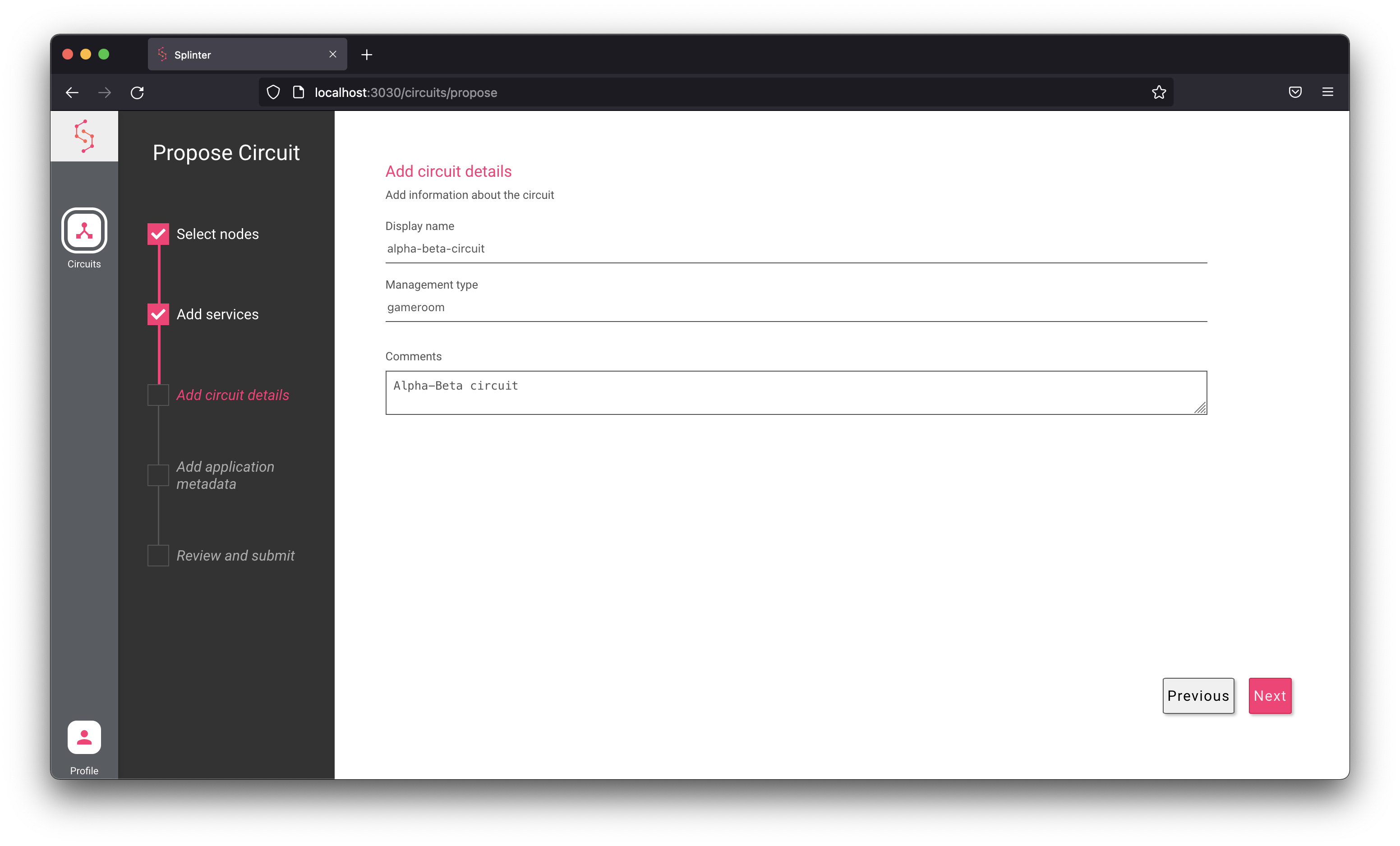

  8. On the Add circuit details form, enter a display name for the circuit, enter gameroom as the circuit management type, and enter an optional comment if you would like. Then click Next.

  9. On the Add application metadata form, you can specify application-specific information (optional), then click Next.

    This example specifies a JSON-format alias for the circuit.

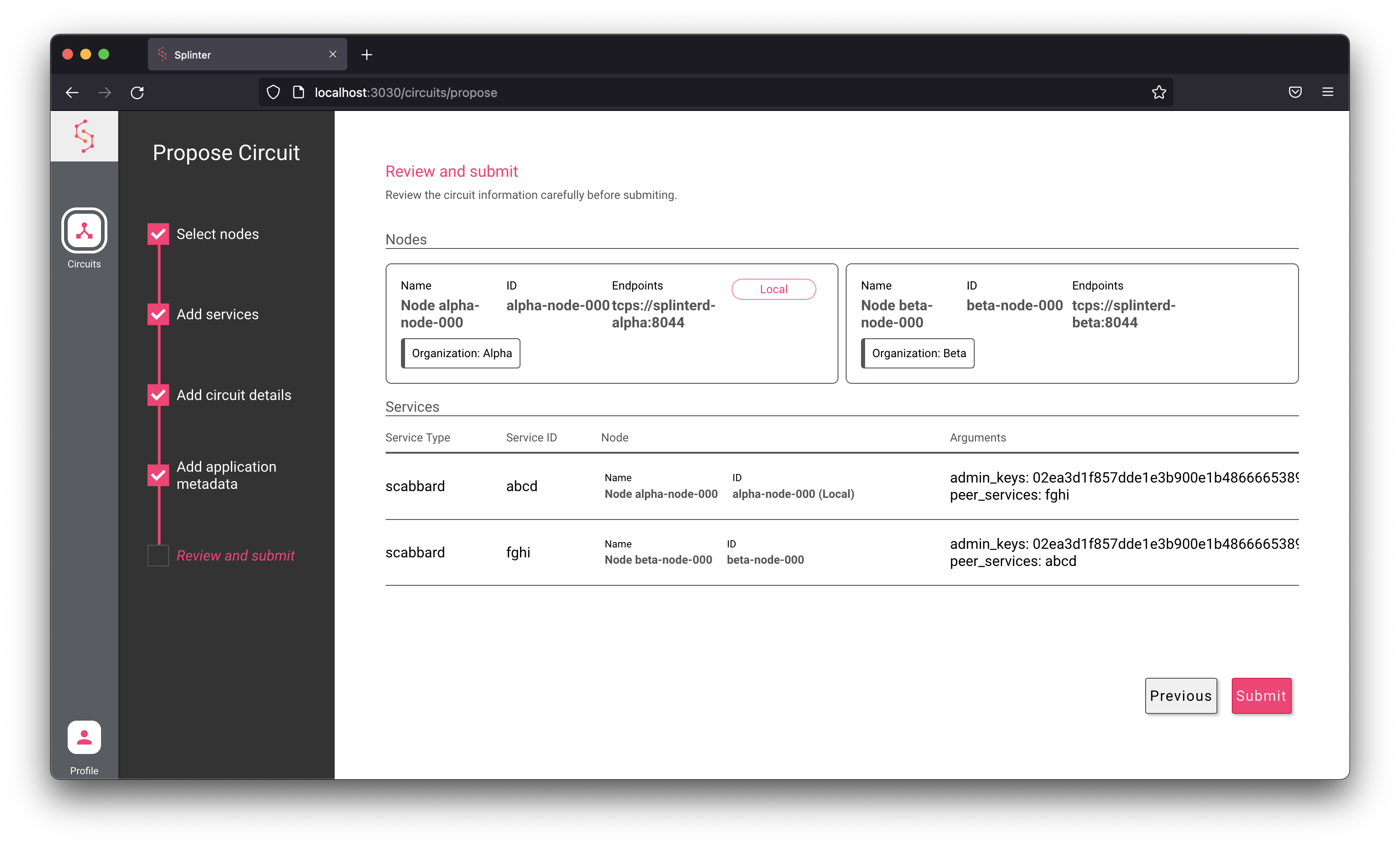

  10. On the Review and submit form, carefully check the circuit proposal. If necessary, use the Previous button to go back and fix incorrect information.

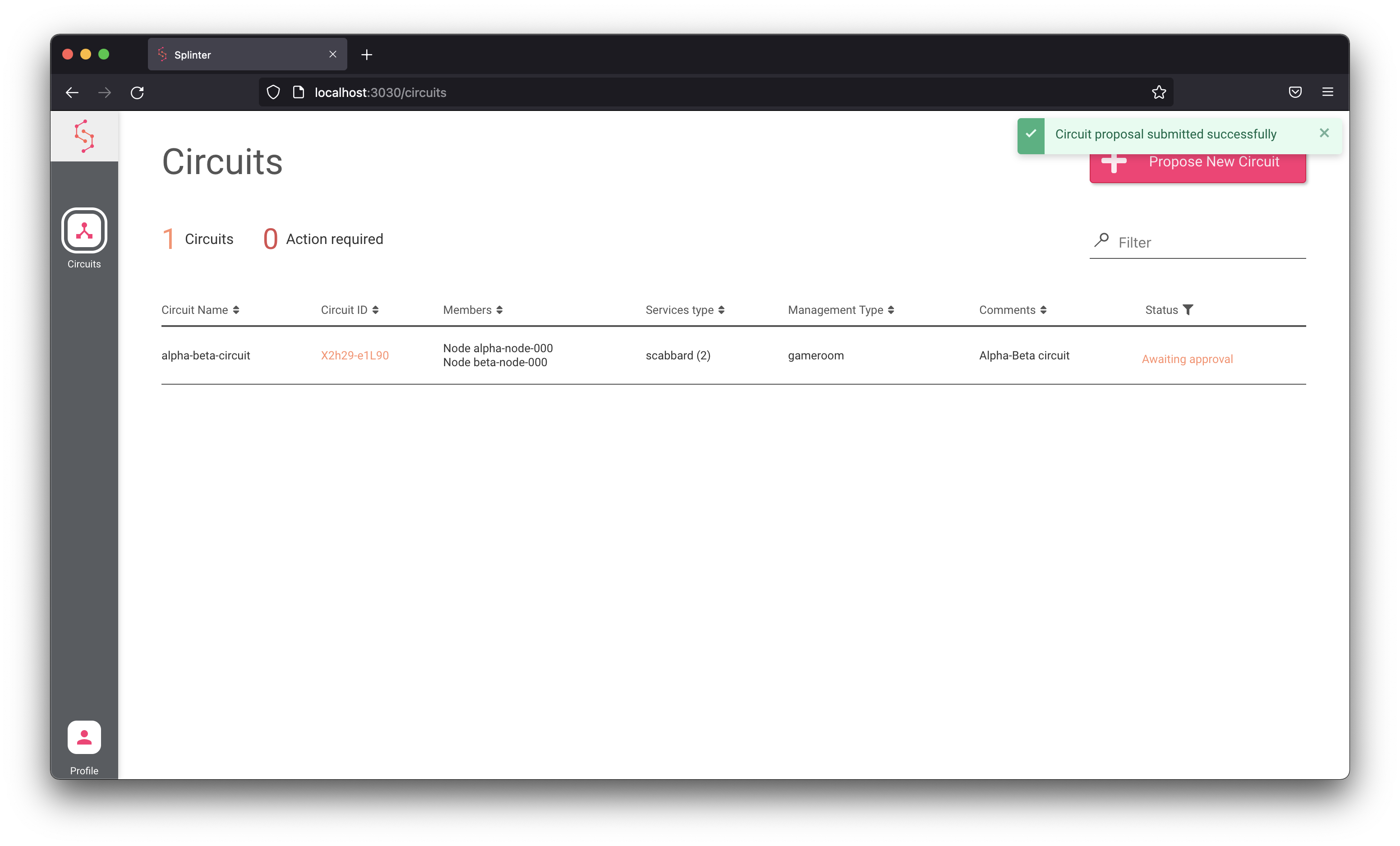

  11. When you’re sure the circuit proposal is correct, click Submit. If the proposal is valid and is submitted successfully, the Circuits page displays a notification and a summary of the proposed circuit (after a few seconds).

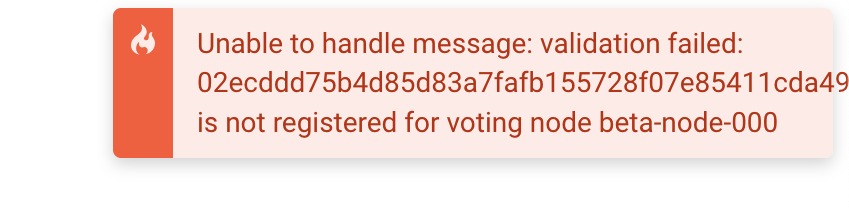

    Otherwise, the notification displays an error with information about the problem. The error is also displayed as a log message in the terminal window running docker-compose.

Viewing a Circuit Proposal

  1. To view the Circuits page (if not already displayed), click the Circuits icon in the left menu.

  2. The Circuits page shows all circuits and proposals. In this example, Alice sees one proposed circuit that is awaiting approval from Bob.

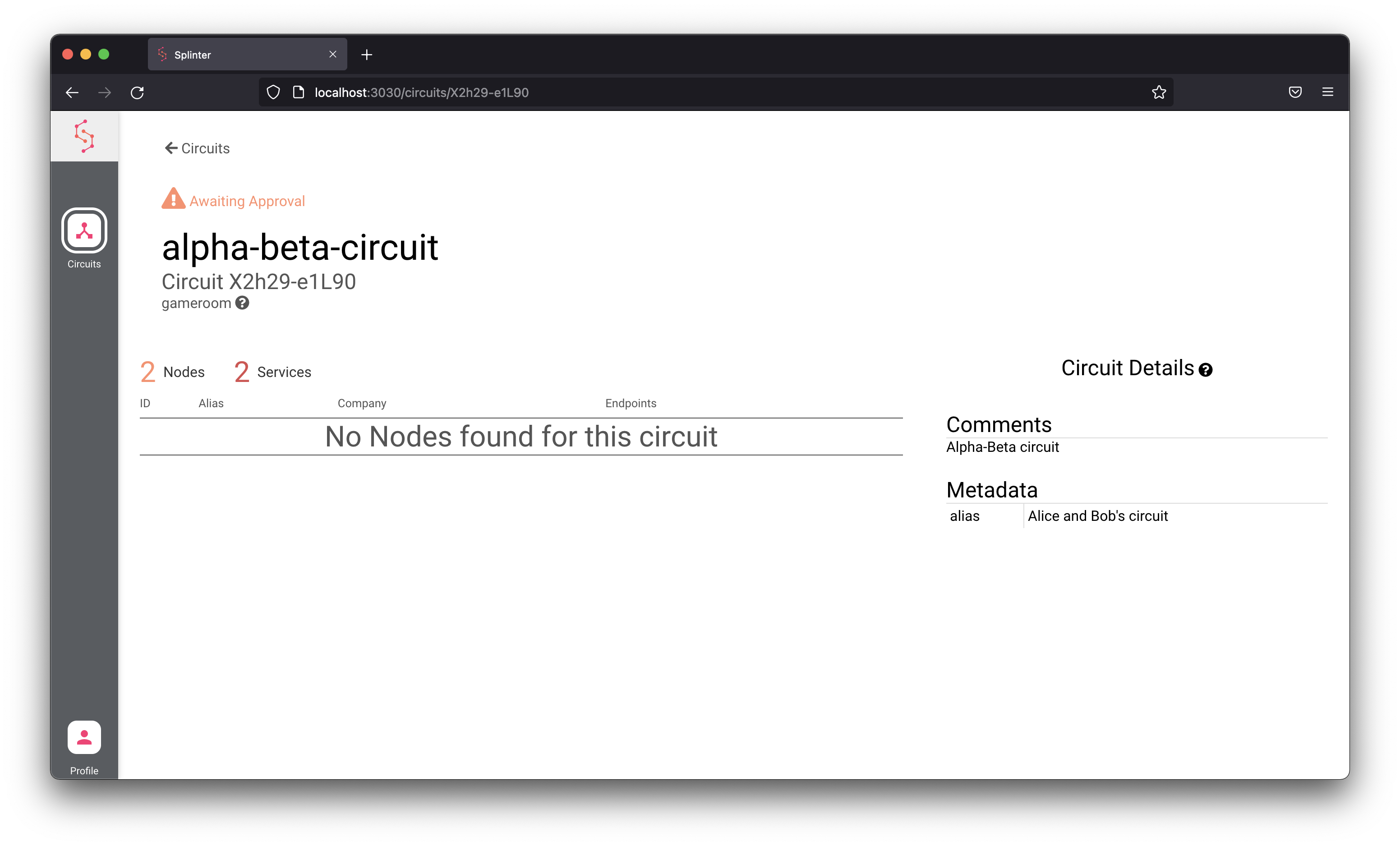

  3. To view the proposal details, click on the proposal summary. The circuit detail page shows information about each node in the circuit.

Voting on a Circuit Proposal

As a user on the other node, Bob must vote to accept or reject the proposal.

  1. To view Bob’s version of the Admin UI, open a browser and go to localhost:3031.

  2. If Bob is not already logged in, register Bob as a new user (see Logging In or Registering), then add Bob’s user keys and mark them as active (see Adding User Keys).

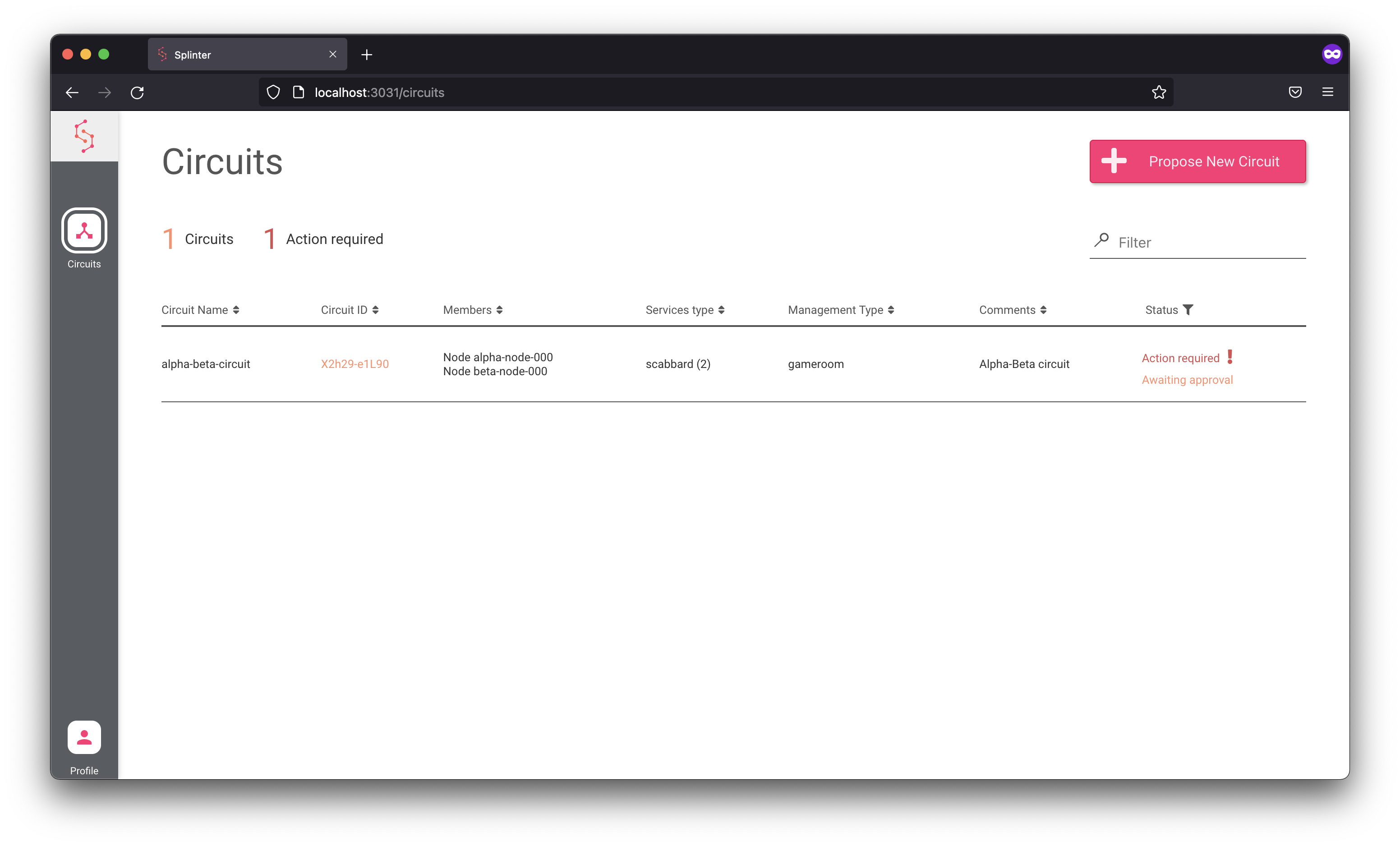

  3. To display the Circuits page, click on the Circuit icon. Notice that Bob’s view includes “Action required” and “Awaiting approval” notifications because his vote is needed.

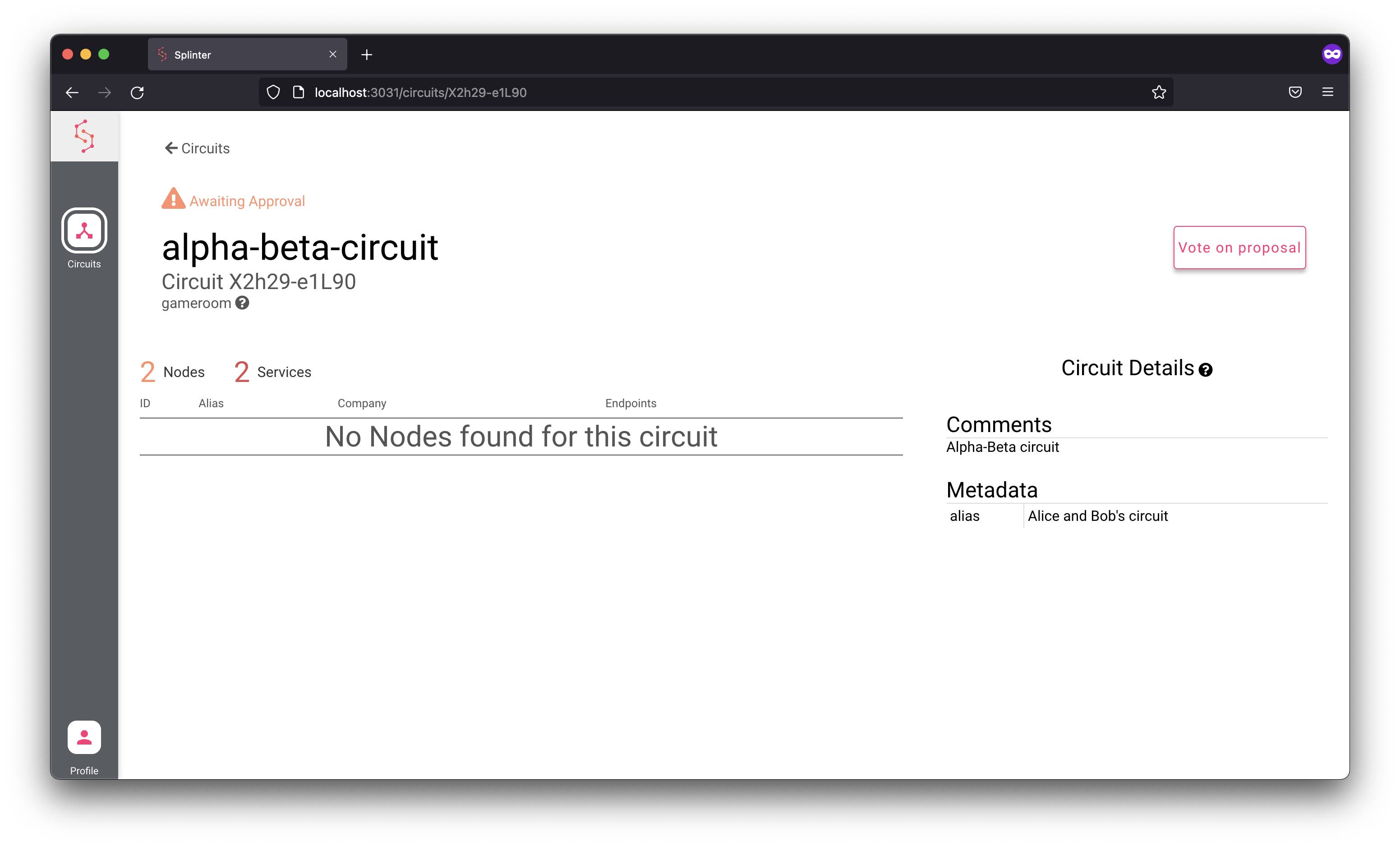

  4. Click on the proposal summary to see details of the proposed circuit. For Bob, this page displays a Vote on proposal button.

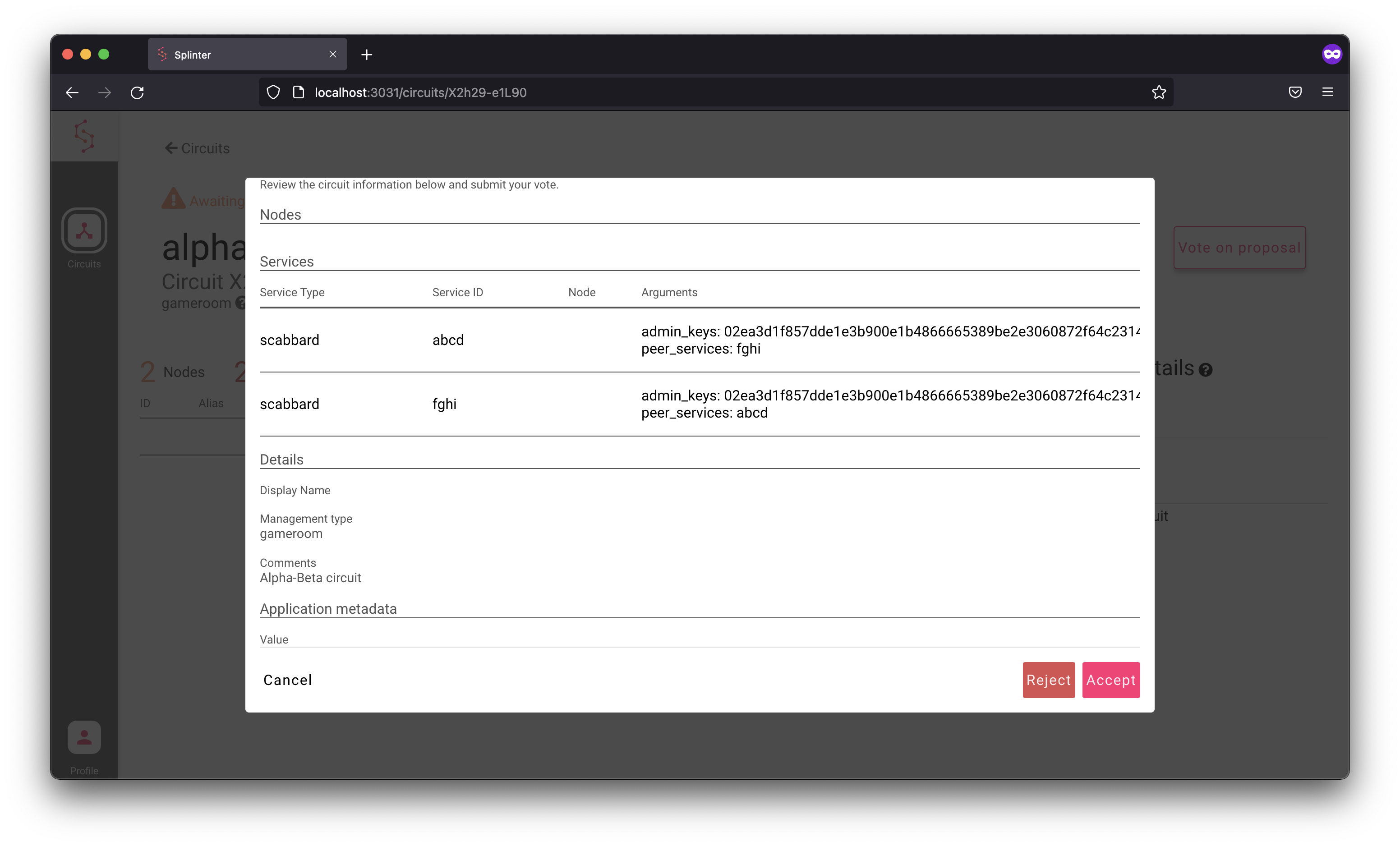

  5. Click Vote on proposal to display the Vote on circuit proposal dialog. Review the circuit details, then select either Accept or Reject to submit a vote.

    In this example, Bob eagerly accepts the proposal.

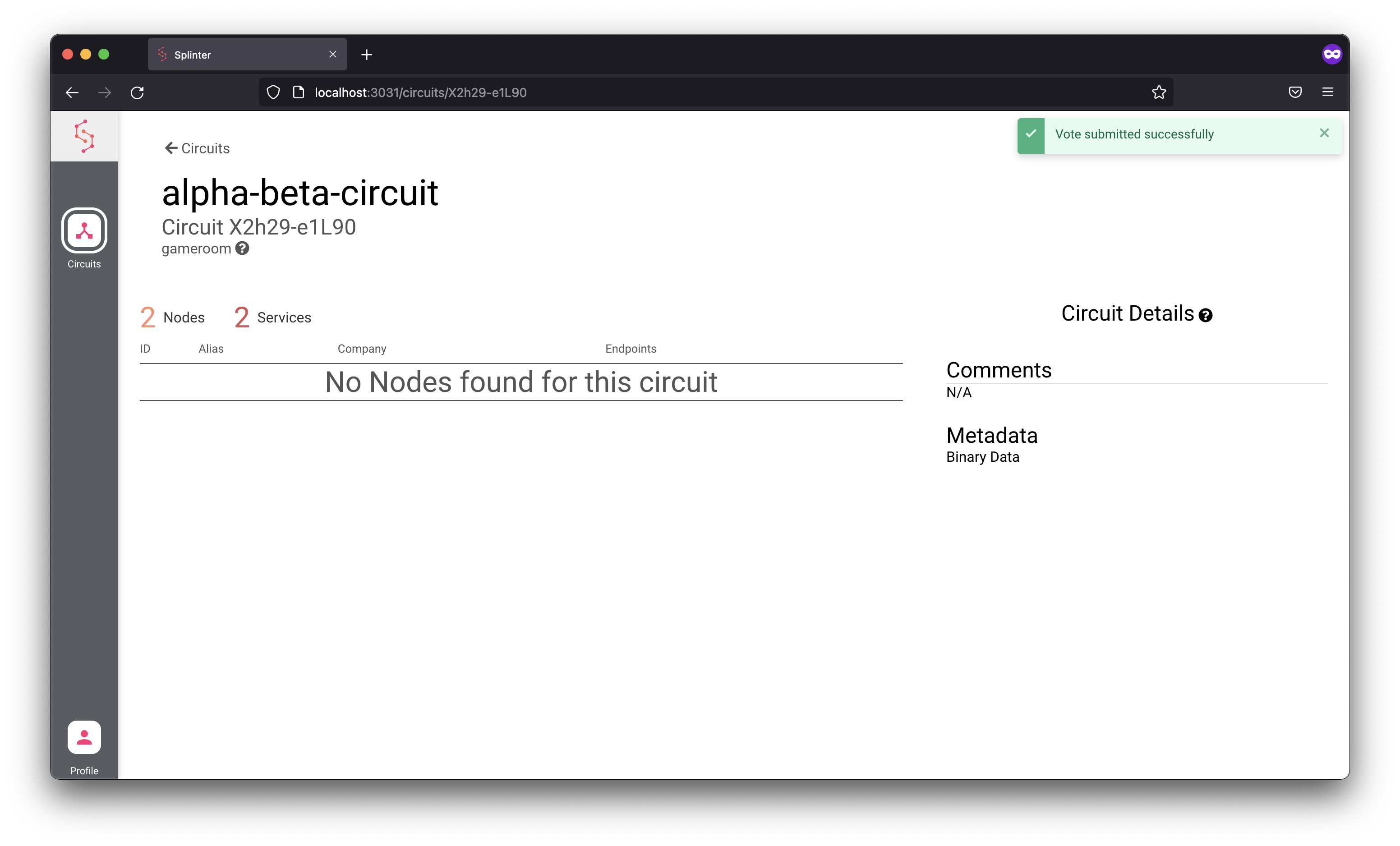

  6. After Bob’s approval, the circuit detail page displays a notification that the vote was submitted successfully. (If Bob had rejected the proposal, the main Circuits page would display an empty list with no proposals or circuits.)

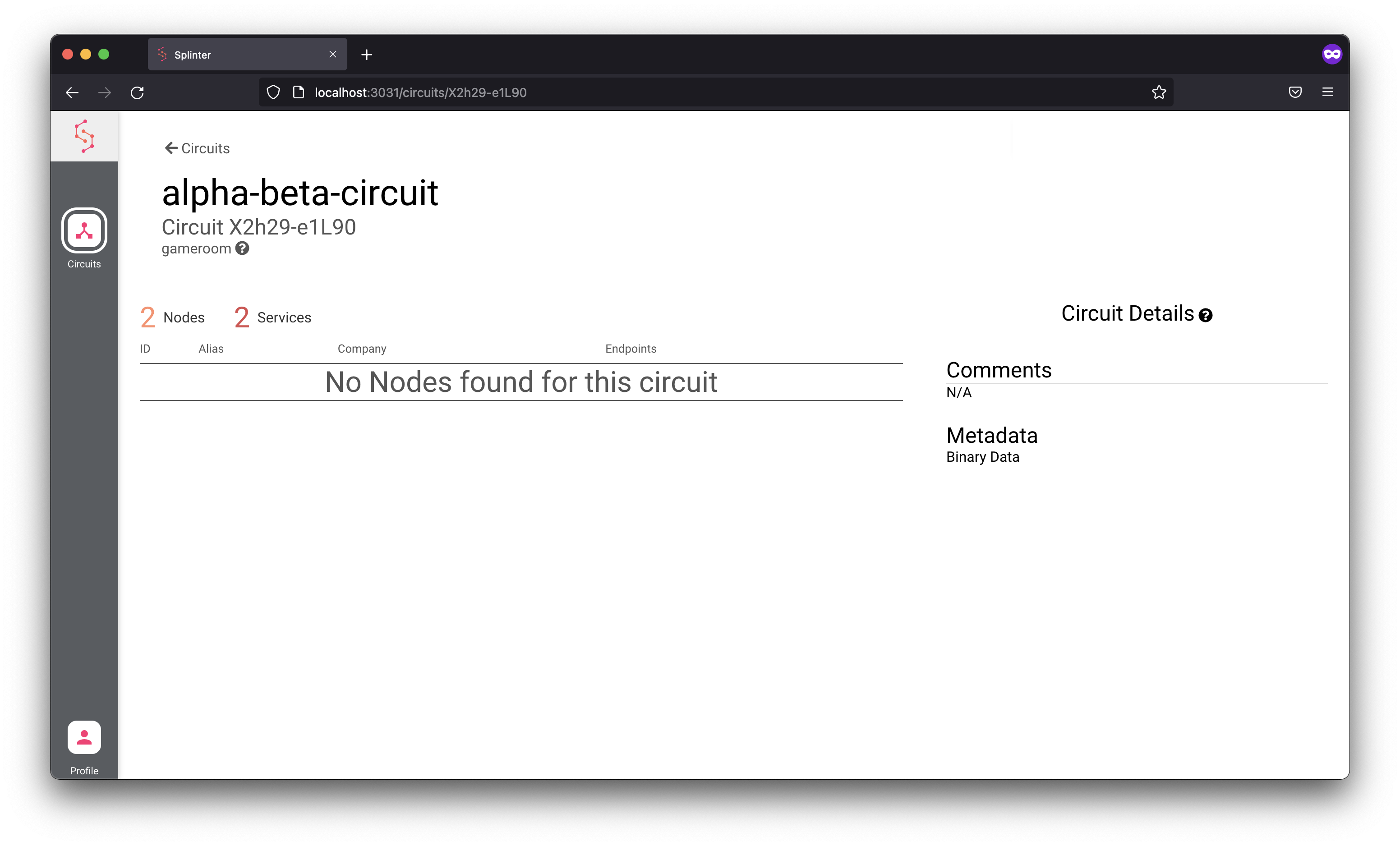

  7. After a short delay, the circuit is created. The circuit detail page no longer shows “action required” notifications at the top or in the Status column.

  8. Likewise, the main Circuits page shows the new circuit in place of the proposal.

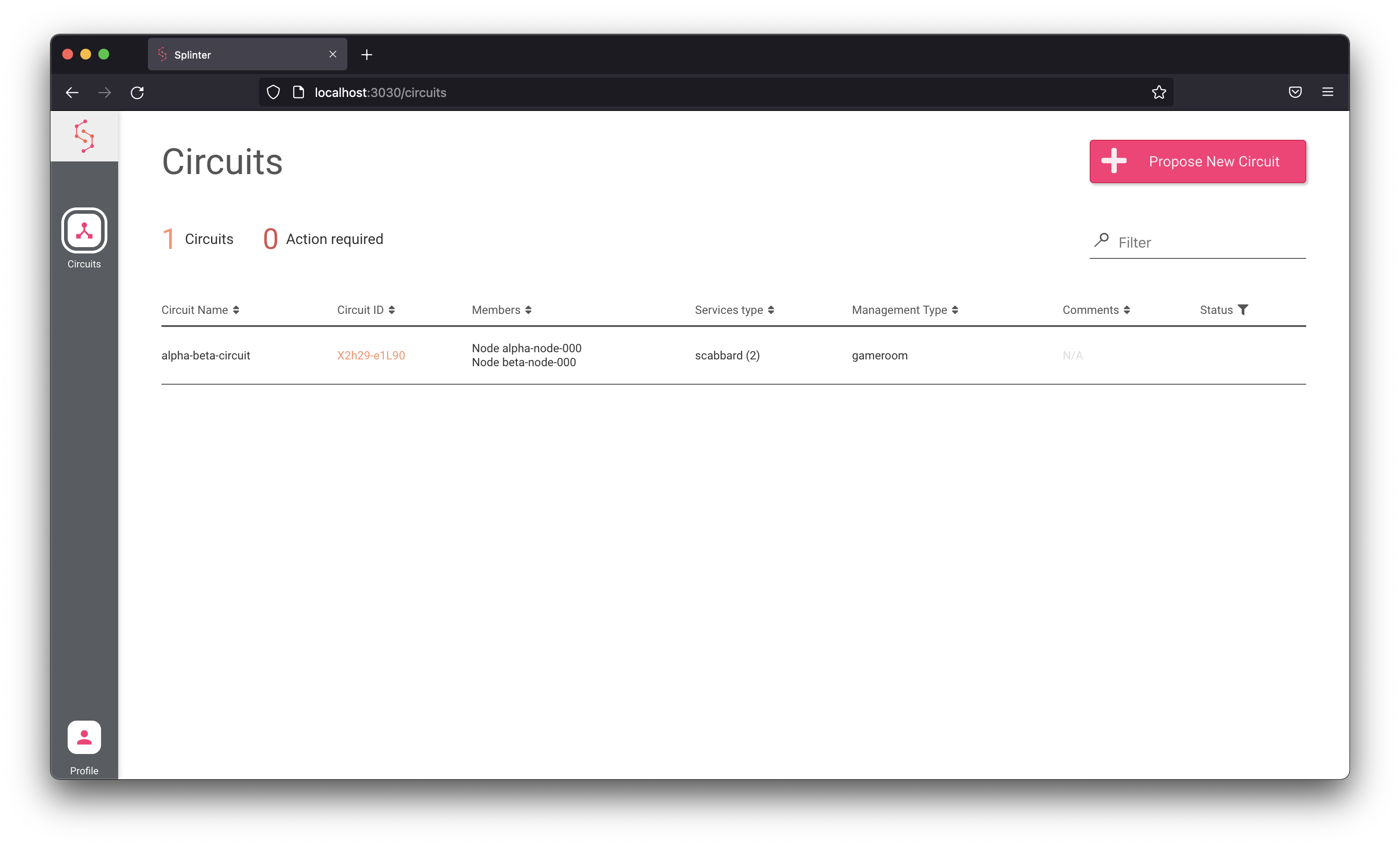

  9. From Alice’s browser window (at localhost:3030), the main Circuits page also displays the new circuit.

Logging Out

  1. Hover over the profile icon to display the Logout button.

  2. Click Logout.

Stopping the Demo

  1. To stop the demo, enter CTRL-C in the terminal window where you ran docker-compose up, and wait for a graceful shutdown.

     registry-server             | 172.24.0.7 - - [29/Jun/2020:22:59:02 +0000] "GET /registry.yaml HTTP/1.1" 200 458
     splinterd-alpha             | [2020-06-29 22:59:02.326] T["reqwest-internal-sync-runtime"] DEBUG [reqwest::async_impl::client] response '200 OK' for http://registry-server/registry.yaml
     splinterd-alpha             | [2020-06-29 22:59:02.327] T["Remote Registry Automatic Refresh: http://registry-server:80/registry.yaml"] DEBUG [splinter::registry::yaml::remote] Automatic refresh of remote registry 'http://registry-server:80/registry.yaml' successful
     ^CGracefully stopping... (press Ctrl+C again to force)
     Stopping registry-server            ... done
     Stopping splinter-db-beta           ... done
     Stopping splinter-ui-beta           ... done
     Stopping splinterd-beta             ... done
     Stopping splinter-db-alpha          ... done
     Stopping splinter-ui-alpha          ... done
     Stopping sapling-dev-server-beta    ... done
     Stopping splinterd-alpha            ... done
     Stopping sapling-dev-server-alpha   ... done

  2. To remove the Docker containers (including all user and circuit information), run one of the following commands, depending on the docker-compose file that was used:

     docker-compose -f docker-compose-biome.yaml down --volumes
     docker-compose -f docker-compose-oauth.yaml down --volumes
